This PR is AI generated.

Parse decimal building heights

The OpenMapTiles profile parses height, min_height, building:levels, and
building:min_level with tonumber(value, 10).

That works for integer tags, but newer Lua versions reject decimal strings when
an explicit base is supplied. Valid OSM values such as height=18.5 and
building:levels=3.5 therefore parse as nil and fall back to the default
one-floor render height. LuaJIT accepts the same values with the base argument,
so the same input can produce different render_height values depending on the
Lua runtime used to build tilemaker.

Parse these four fields with plain tonumber(value) instead. That keeps
integer handling unchanged, accepts decimal OSM values, and makes the profile
consistent across Lua runtimes.

The change is intentionally scoped to the OpenMapTiles building height helper.
It does not alter layer selection, building feature counts, minzoom handling, or
the existing fallback height for buildings with no usable height/level tags.

Examples

The examples below are from Liechtenstein CI artifacts generated from the same
input.

Decimal height

Source object:

way 490877222
height=18.5
building=detached

OSM link:

https://www.openstreetmap.org/way/490877222

Pre-fix output on a newer Lua runtime:

render_height=3.66

Pre-fix output on LuaJIT:

render_height=18.5

Post-fix output:

render_height=18.5

Decimal height comparison

Decimal building:levels

Source object:

way 165295920
building:levels=3.5
building=school

OSM link:

https://www.openstreetmap.org/way/165295920

Pre-fix output on a newer Lua runtime:

render_height=3.66

Pre-fix output on LuaJIT:

render_height=12.81

Post-fix output:

render_height=12.81

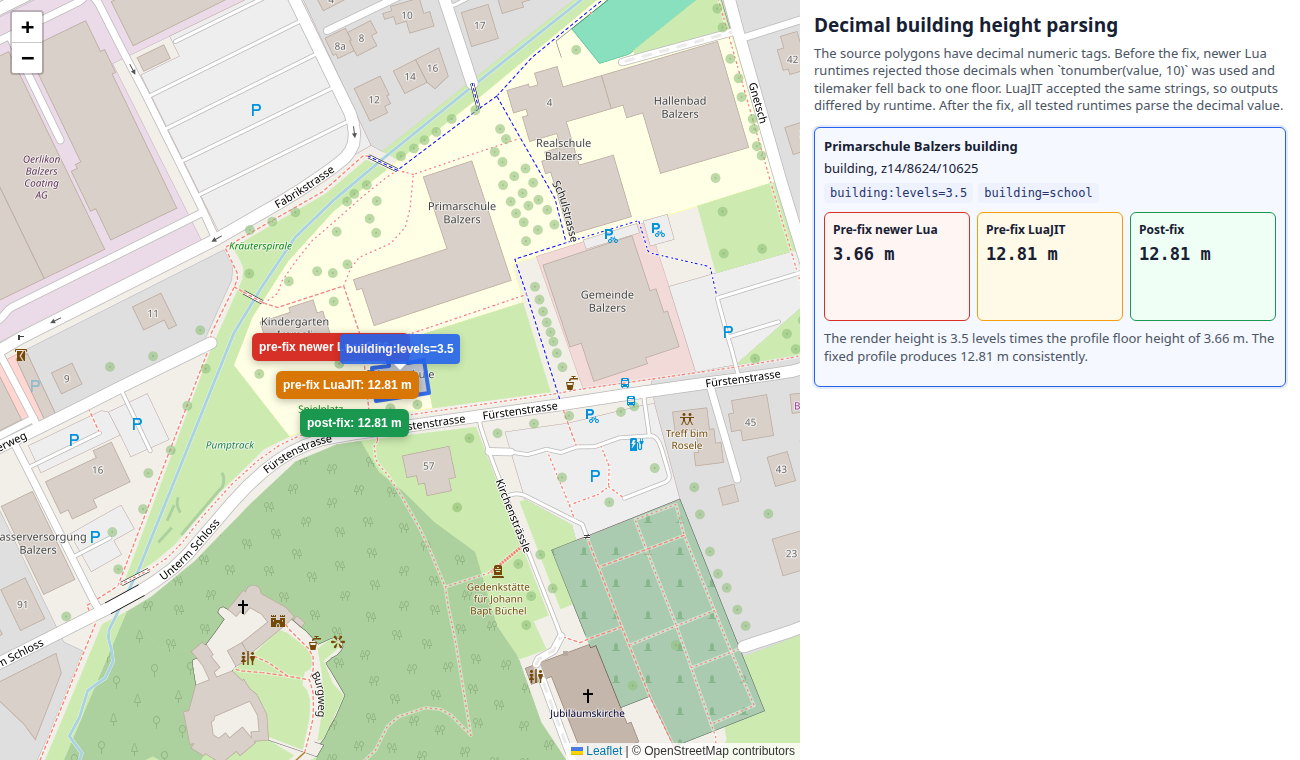

Decimal building levels comparison

These examples show both parts of the bug: decimal tags were being ignored on
some Lua runtimes, and generated tile content could differ across CI runners
for the same input.

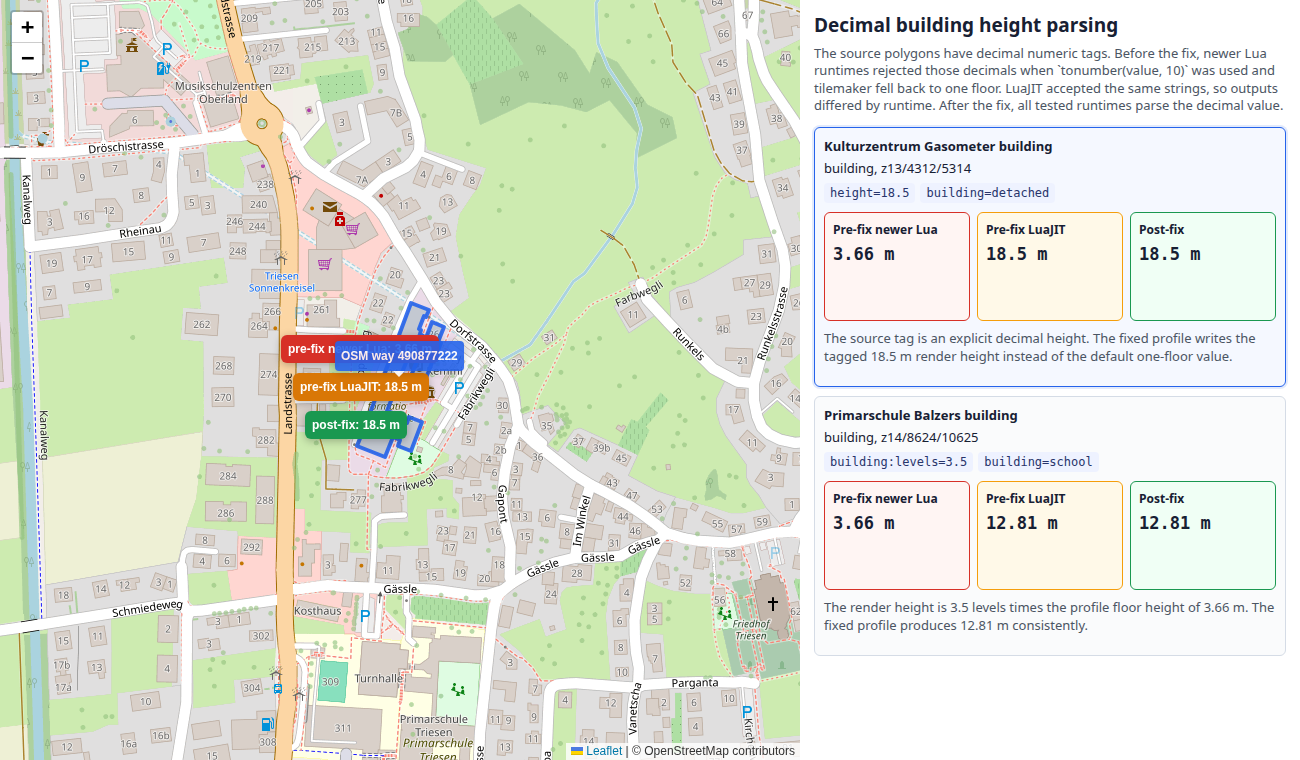

Building height overview

Reproduce

With a newer Lua runtime:

lua -e 'print(tonumber("18.5", 10)); print(tonumber("18.5"))'

Before this change, the first expression returns nil, so
SetBuildingHeightAttributes() falls back to BUILDING_FLOOR_HEIGHT.

After this change, decimal height and level values parse as numbers and the
rendered building attributes use the source tag values.

Testing

  • git diff --check origin/master..HEAD
  • luac -p resources/process-openmaptiles.lua
  • Focused Lua check that tonumber("18.5", 10) is rejected by the local newer
    Lua runtime while tonumber("18.5") is accepted
  • Local generated-tile artifact comparison for decimal height and decimal
    building:levels examples

Related Issues And PRs

Related upstream context:

I did not find an existing upstream issue, PR, or discussion that directly
reports decimal building heights being ignored on newer Lua runtimes.

The OpenMapTiles profile parsed height and building level tags with an explicit base argument to tonumber. Newer Lua runtimes reject decimal strings in that mode, so valid values such as height=18.5 and building:levels=3.5 fell back to the default one-floor render height while LuaJIT accepted them.

Parse these fields without an explicit base so decimal OSM values are handled consistently across Lua runtimes without changing integer handling or fallback behavior.
