feat(recording): make iOS export quality configurable

[ryanda9910]

What

Adds a configurable iOS recording export quality. A new record start ... --export-quality <medium|high> option selects the AVAssetExportSession preset used whenever an iOS recording is re-encoded during the stop/export path, whether that re-encode is a --quality resize/downscale or a touch-overlay burn-in.

• medium (default) selects AVAssetExportPresetMediumQuality, keeping the fast, simulator-friendly export.
• high selects AVAssetExportPresetHighestQuality for evidence, release notes, or debugging visual artifacts.

This wires up the src/core/recording-export-quality.ts enum that was present but not yet consumed.

Why

Closes #568. The recording resize export was hardcoded to AVAssetExportPresetHighestQuality, so teams could not trade export speed against quality. The default now stays optimized for speed, and a higher-quality mode is available on demand through the same recording stop/export path.

How it is wired

• src/core/recording-export-quality.ts: keeps the existing RECORDING_EXPORT_QUALITIES / DEFAULT_RECORDING_EXPORT_QUALITY and adds a pure recordingExportQualityToPreset() mapping plus an isRecordingExportQuality() guard.
• src/utils/cli-flags.ts: registers the --export-quality enum flag.
• src/commands/recording/index.ts: adds the field to the record command surface, CLI reader, allowed flags, and usage/help.
• src/daemon/handlers/record-trace-recording.ts: validates the flag (rejects unknown values with INVALID_ARGS), stores it on the recording session, and forwards it to the resize step.
• src/daemon/handlers/record-trace-finalize.ts: forwards the recording's exportQuality into the touch-overlay finalize step.
• src/recording/overlay.ts: both resizeRecording and overlayRecordingTouches pass --export-quality to their helpers (overlay defaults to DEFAULT_RECORDING_EXPORT_QUALITY when not set).
• ios-runner/.../recording-resize.swift and ios-runner/.../recording-overlay.swift: both parse --export-quality, default to medium, and select the matching preset (medium falls back to highest when the medium preset is not compatible with the composition).

Enum to preset mapping

--export-quality	AVAssetExportPreset
medium (default)	AVAssetExportPresetMediumQuality
high	AVAssetExportPresetHighestQuality

Capture quality vs export quality

These stay distinct. The existing integer --quality <5-10> capture flag scales render resolution and is unchanged. The new --export-quality <medium|high> only chooses how hard the exporter works to preserve the video when it re-encodes. The docs and help spell out the difference.

Backward compatibility

The default is medium, which matches the speed-optimized default already used by the export paths and the shipped DEFAULT_RECORDING_EXPORT_QUALITY = 'medium'. Callers that pass no flag get byte-identical output to before (verified in the e2e below: the no-flag run matches --export-quality medium exactly). Anyone who wants the highest-quality export can pass --export-quality high.

How tested

• pnpm test:unit: full unit suite green (2581 passed in the original change; the overlay follow-up adds two more in src/recording/__tests__/overlay.test.ts).
• New unit tests: enum to preset mapping and guard (src/core/__tests__/recording-export-quality.test.ts), CLI option parsing (src/commands/recording/index.test.ts), resize + overlay argument forwarding incl. default-preserved behavior (src/recording/__tests__/overlay.test.ts), and daemon validation + plumbing (src/daemon/handlers/__tests__/record-trace.test.ts). None require a live simulator.
• pnpm typecheck, pnpm lint, pnpm format:check: green. swiftc -typecheck on both modified Swift scripts: OK.

End-to-end on the host (real re-encode)

The touch-overlay burn-in and export-preset re-encode are a macOS host post-process, not a simulator-internal step: exportProcessedVideo (src/recording/overlay.ts) compiles recording-overlay.swift and runs it on the host with --input/--output/--events/--export-quality. The simulator only supplies the raw screen recording as input. So the export-quality logic this PR changes can be exercised end to end on the host exactly as production runs it.

I compiled recording-overlay.swift and ran the real binary against a 720x1280 test clip plus a two-tap gesture envelope, once per quality:

run	video bitrate	output size	preset
--export-quality medium	195 kbps	75 KB	AVAssetExportPresetMediumQuality
no flag (default)	195 kbps	75 KB	medium (byte-identical to above)
--export-quality high	471 kbps (2.4x)	178 KB	AVAssetExportPresetHighestQuality

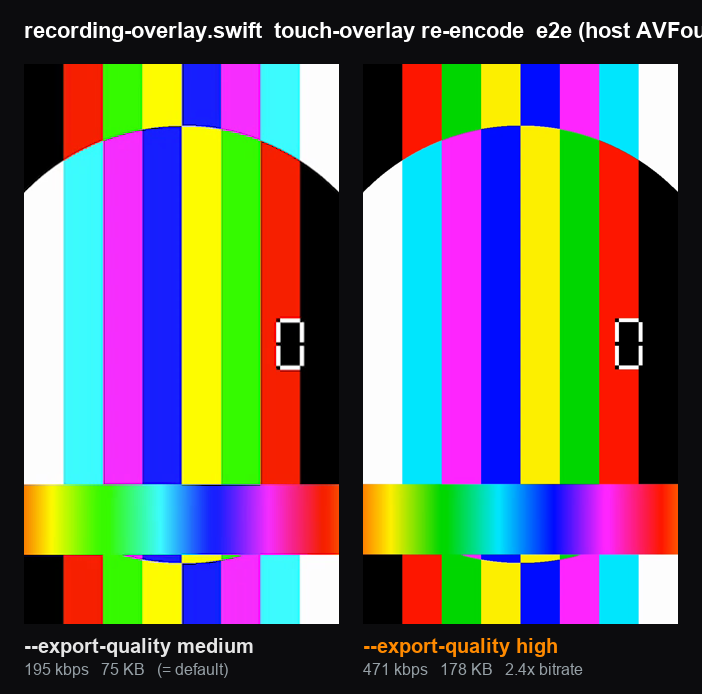

The flag now demonstrably changes the overlay re-encode preset, and the default path is unchanged. Frames from each output (touch dot burned in):

A booted-simulator run would only change where the input clip comes from; it would not exercise any additional export-quality code, since that all runs on the host. If CI has a simulator lane, a full device capture is still welcome as a belt-and-suspenders check before merge.

[thymikee]

Review finding: --export-quality high is not applied to the touch-overlay export path.

The new flag is stored on the recording and forwarded to resizeRecording, but finalizeRecordingOverlay() still calls overlayRecordingTouches() without export quality (src/daemon/handlers/record-trace-finalize.ts:58), and overlayRecordingTouches() still invokes recording-overlay.swift with only --events (src/recording/overlay.ts:128). That Swift helper always chooses AVAssetExportPresetMediumQuality when compatible (ios-runner/AgentDeviceRunner/RecordingScripts/recording-overlay.swift:150).

This means agent-device record start out.mp4 --export-quality high has no effect when the stop path re-encodes only to burn in touch overlays, even though the docs now say the flag controls the iOS export preset whenever a recording is re-encoded (website/docs/docs/commands.md:795) and issue #568 asks for a higher-quality mode wired through the same stop/export path. Please thread exportQuality through finalizeRecordingOverlay/overlayRecordingTouches and add it to recording-overlay.swift, or narrow the docs/help to say the flag only affects resize/downscale exports.

[ryanda9910]

Good catch, fixed in 8f6eb35.

I threaded the recording's exportQuality through the overlay path the same way it already flows through resize:

• finalizeRecordingOverlay() now forwards recording.exportQuality into overlayRecordingTouches() (src/daemon/handlers/record-trace-finalize.ts).
• overlayRecordingTouches() passes it as --export-quality to the Swift helper (src/recording/overlay.ts), defaulting to medium when unset.
• recording-overlay.swift now parses --export-quality and resolves the preset via an exportPresetName() helper copied from recording-resize.swift, replacing the hardcoded AVAssetExportPresetMediumQuality. Medium stays the default so callers that do not set the flag are unchanged.

Added overlay unit tests mirroring the resize ones (default medium + forwarded high), and tightened the docs note so it reads "whenever a recording is re-encoded, whether that is --quality downscaling it or burning in touch overlays on record stop". swiftc -typecheck on the helper is clean, and typecheck/lint/unit tests pass.

[ryanda9910]

Added an end to end check for this to the PR description. Since the overlay burn-in and export-preset re-encode run on the macOS host (exportProcessedVideo compiles recording-overlay.swift and runs it with the args, the simulator only supplies the raw clip), I compiled the helper and ran the real binary against a test clip plus a two-tap gesture envelope, once per quality:

run	video bitrate	size
medium	195 kbps	75 KB
no flag (default)	195 kbps	75 KB
high	471 kbps	178 KB

So high now genuinely picks the highest-quality preset on the overlay path and the default is unchanged. Screenshot and full table are in the updated description.
